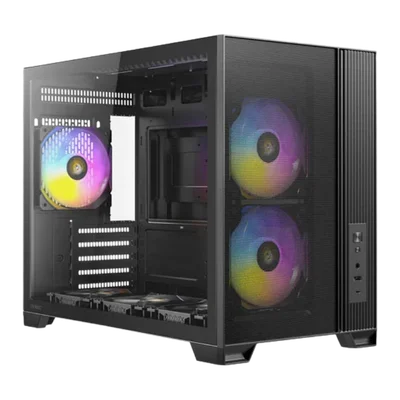

Antec FLUX M Gaming Case Micro ATX Mesh Wood Front - Black - ARGB Fans

Antec FLUX M Mini Tower CaseFLOW LUXURYF-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.

FLUX AIRFLOWMulti-directional vent design, featuring extensive air intakes at the front and bottom, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

PRE-INSTALLED 6 X HIGH-PERFORMANCE FANS1 x 120mm PWM ARGB Fan3 x 120mm PWM Fans2 x 120mm PWM ARGB FansFLUX VERTICAL COOLINGA large bottom mesh panel boosts airflow,enhancing cooling efficiency around the graphics card.

FLUX HORIZONTAL COOLINGAir intake via the front mesh provides a smooth venting channel throughout the case.

BOTTOM AIR INTAKE OPTIMIZATIONThe large bottom intake increases airflow, with about 20mm clearance between the bottom fans and the GPU, allowing reverse fans to efficiently and directlyBUILT-IN GPU BRACKETIncludes a support bracket compatible with high-performance graphics cards.

FRONT-MOUNTED PSU CHAMBER & 13A EXTENSION CABLEThe front-mounted PSU chamber improves airflow by freeing up internal space, while the included 138A extension cable ensures stable power delivery for high-wattage PSUs.

CABLE MANAGEMENTCable management space behind the motherboard provides up to 59mm at the front and 49mm at the rear.

EXTENSIVE INTERIOR+ Motherboard support Micro-ATX, ITX * Power Supply max length (Without cable)s 160mm+ CPU cooler max height <175mm OBR a 2/2+ GPU max length = 405mmAirflow

• F-LUX Platform with vertical airflow design accelerates heat exhaust from bottom to top.- Pre-installed fans include 2 × 120mm ARGB PWM fans at the front, 3 × 120mm reverse PWM fans, and 1 × 120mm ARGB PWM fan at the rear.- Supports up to a 360mm radiator at the top.- 20mm clearance between GPU and bottom fans ensures optimal airflow circulation.

Appearance

• Large front panel mesh for enhanced cooling.

Functionality

• Cable management space behind the motherboard provides up to 59mm at the front and 49mm at the rear.- Equipped with a 13A extension cable for stable power delivery and support for high-wattage PSUs.- Comes with 5 reusable PCIe slots.- Full-size dust filters on top and bottom for effective dust prevention while maintaining optimal airflow.

Additional Features

• Front I/O supports 1 × USB Type-C 3.2 Gen 2 (10Gbps) port.- Built-in GPU support bracket.

SpecificationsDimensions 459 x 247 x 365mm (DWH)Form Factor Mini TowerMaterials Steel + PlasticMainboard Support Micro-ATX, ITXFront Access & Controls Power, Reset, USB3.0 x 1, Type-C 3.2 Gen 2 (10 Gbps) x 1, Headphone/Mic Combo JackSide Panel 3mm Tempered Glass Drive Bays Expansion Slots 53.5" / 2.5" 2 / 2Fan Support Front 2 x 120mmTop 3 x 120mmBottom 3 x 120mmRear 1 x 120mmIncluded Fan(s) 2 X 120mm ARGB PWM fans at the front + 3 x 120mm PWM reverse fans at the bottom + 1 x 120mm ARGB PWM fan at the rearRadiator Support Top 120 / 240 / 360mmRear 120mmClearance Max GPU Length &le;405mmMax CPU Cooler Height &le;175mmMax PSU Length (Cable not included)&le;160mmMiscellaneous Dust Filter Top / BottomNet Weight 6.35 KgGross Weight 7.41 KgWarranty 2 YearsUPC 0-761345-10253-7
