DeepCool PL750D 750W PSU 80 Plus Bronze Power Supply ATX3.1 PCIe5.0 - Wired

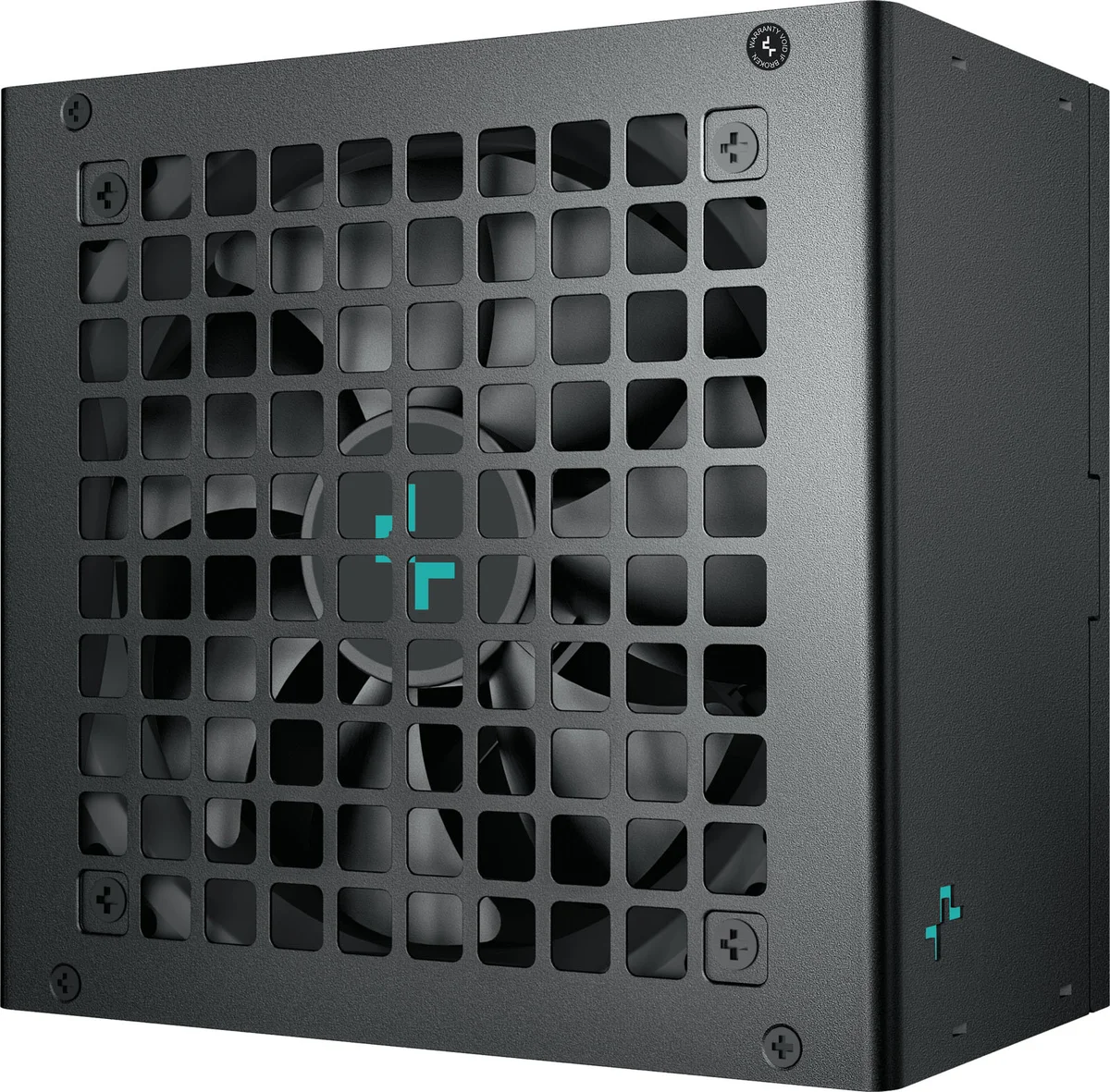

The DeepCool PL750D is a 750W non-modular power supply unit (PSU) that complies with the Intel ATX12V V3.1 standard. Designed for reliability and efficiency, it features a 120mm hydro-bearing fan for optimal cooling and carries an 80 PLUS Bronze certification, ensuring at least 85% energy efficiency under typical loads.

Key Specifications:Form Factor: ATX12V V3.1Dimensions: 150 mm (W) x 140 mm (L) x 86 mm (H)Efficiency Certification: 80 PLUS BronzeFan Size: 120 mmFan Bearing: Hydro BearingTopology: Active PFC + DC to DCCapacitors: Chinese Electrolytic CapacitorsHold-Up Time: =16 msEfficiency: =85% under typical load (50% loading)Protections:Over Power Protection (OPP)Over Voltage Protection (OVP)Short Circuit Protection (SCP)Over Temperature Protection (OTP)Over Current Protection (OCP)Under Voltage Protection (UVP)Surge & Inrush Protection (SIP)No Load Operation (NLO)Operating Temperature: 0°C to 40°CRegulatory Certifications: CE, FCC, CCC, RCM, EAC, BIS, CAN ICES-003(B), NMB-003(B), TUV-RHEnvironmental Compliance: WEEE, RoHSMean Time Between Failures (MTBF): 100,000 hoursConnectors:1 x 20+4 Pin ATX (Motherboard Power)2 x 4+4 Pin ATX12V (CPU Power)3 x 6+2 Pin PCIe (GPU Power)8 x SATA Power2 x 4-Pin Molex (Peripheral Power)1 x 16-Pin (12+4) 12VHPWR Connector (PCIe 5.0)Special Features:The inclusion of a 16AWG 12VHPWR cable enables support for next-generation GPUs with higher power demands. The PL750D also uses premium electrolytic capacitors to ensure enhanced durability and performance.

Warranty:Backed by a 5-year limited warranty, the DeepCool PL750D delivers stable, reliable power for both legacy and next-gen PC builds.
