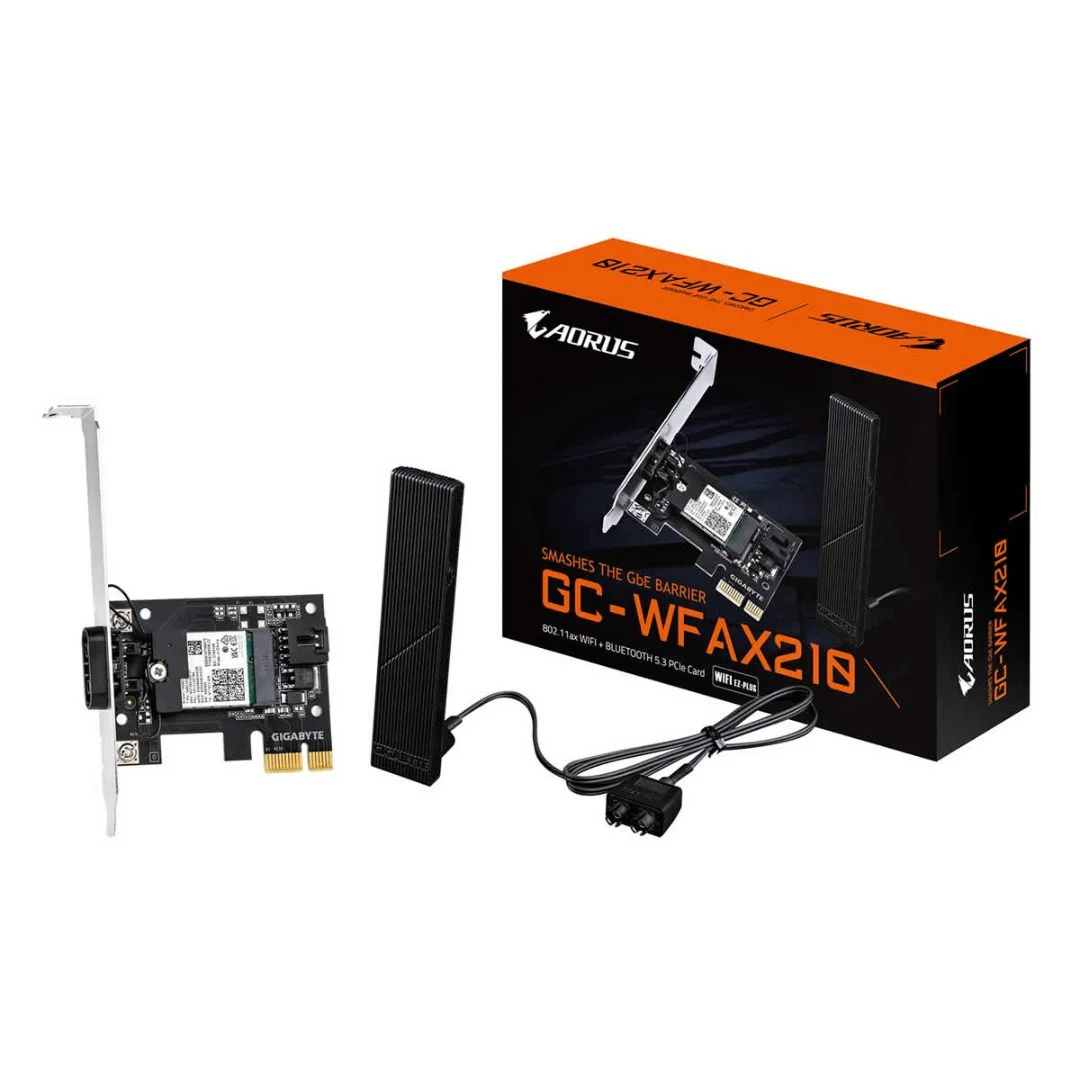

Gigabyte GC-WFAX210 Intel WiFi 6E AX210 Bluetooth 5.2 WIFI PCI-Express Card

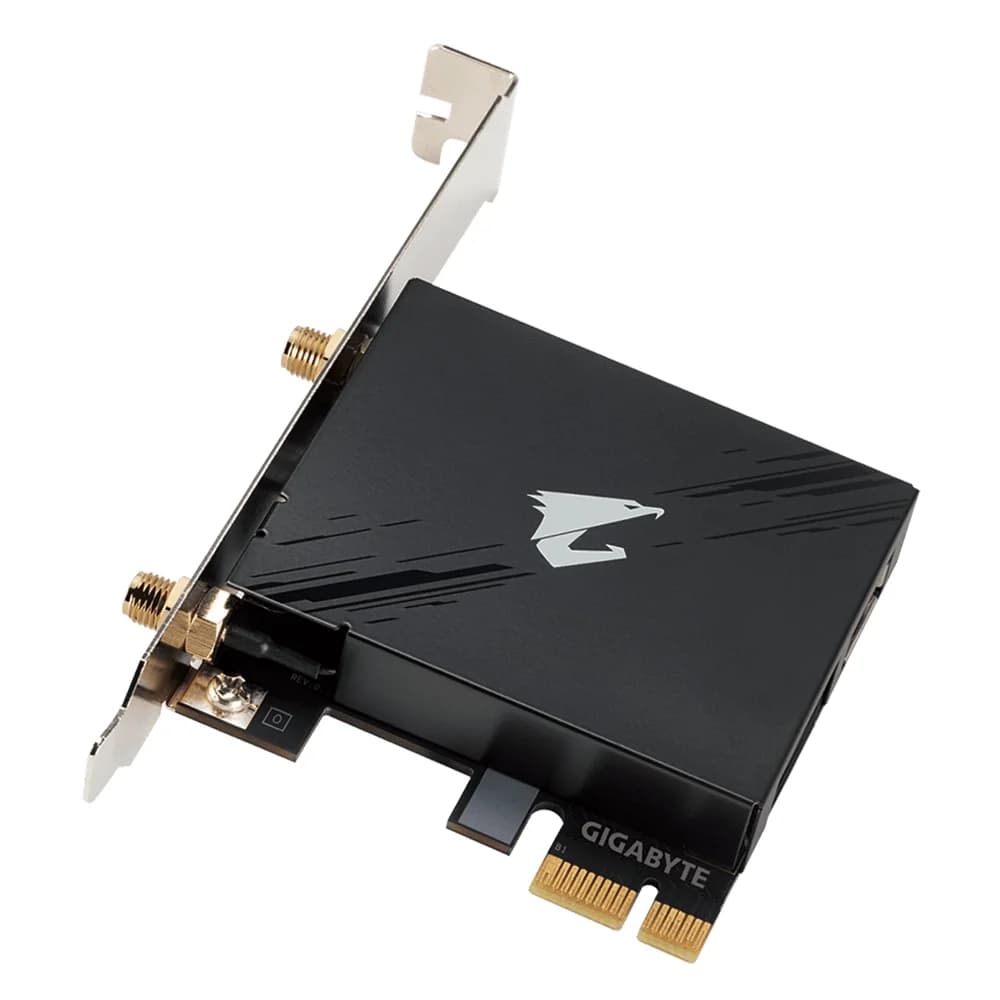

Smashes the GbE Barrier!2x2 802.11ax Tri-Band WIFI + BLUETOOTH 5.2 card GC-WBAX210 is an exclusive PCIe expansion card that offers support for the latest 2x2 802.11ax 160MHz Tri-Band WIFI and BLUETOOTH 5.2 connectivity.

PCIe 4.0 InterfaceGC-WFAX210 features PCIe 4.0 interface which are expected to experience twice bandwidth than PCIe 3.0 devicesWIFI EZ-PlugThe WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

Directional Ultra-high Gain AntennaBoost your signal strength with GIGABYTE's Ultra-high gain Antenna, featuring smart antenna technology for optimized Wi-Fi signal transmission.

Direction signal

• up to 5dBiOmnidirectional signal
• up to 4dBiMagnetic BaseWIFI 6E AdvantageSpectrum congestion is huge problem in current WIFI environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. WIFI 6E is extended standard to WIFI 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With WIFI 6E, users can enjoy faster connection and stronger signal than before.

FeaturesIntel WI-FI 6E AX210 module built-inWIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installationDedicated spectrum in 6GHz band for maximum speed and ultra-low latenciesSupport dual-stream Wireless in the 2.4GHz, 5GHz and 6GHz bandsIEEE 802.11ax compliantHigh speed wireless connection up to 2400MbpsFully qualified BLUETOOTH 5.2MU-MIMO TX/RXPaired with 2Tx2R directional antennaPCIe 4.0 x1 interface cardBLUETOOTH FunctionStandard: BLUETOOTH 5.2WIFI FunctionWireless Alliance*:Wi-Fi CERTIFIED 6*, CERTIFIED* a/b/g/n/ac WMM*, WMM*-Power Save, WPA3, PMF*, Wi-Fi Direct*, WIFI Agile Multiband.* Support of Wi-Fi Alliance certifications is OS-dependent.

IEEE WLAN Standard:IEEE 802.11-2016 and select amendments (selected feature coverage) IEEE 802.11a, b, d,e,g,h,I,k, n,r,u,v,w,ac,ax; Fine Timing Measurement based on 802.11-2016, Wi-Fi Location R2 (802.11az) HW readiness** IEEE 802.11az hardware readiness per expected Wi-Fi Location R2 feature support and based on draft 2.1 of the IEEE 802.11az amendment and is subject to change.* Wi-Fi 6E and its 6GHz carrier frequency support may vary by country.
